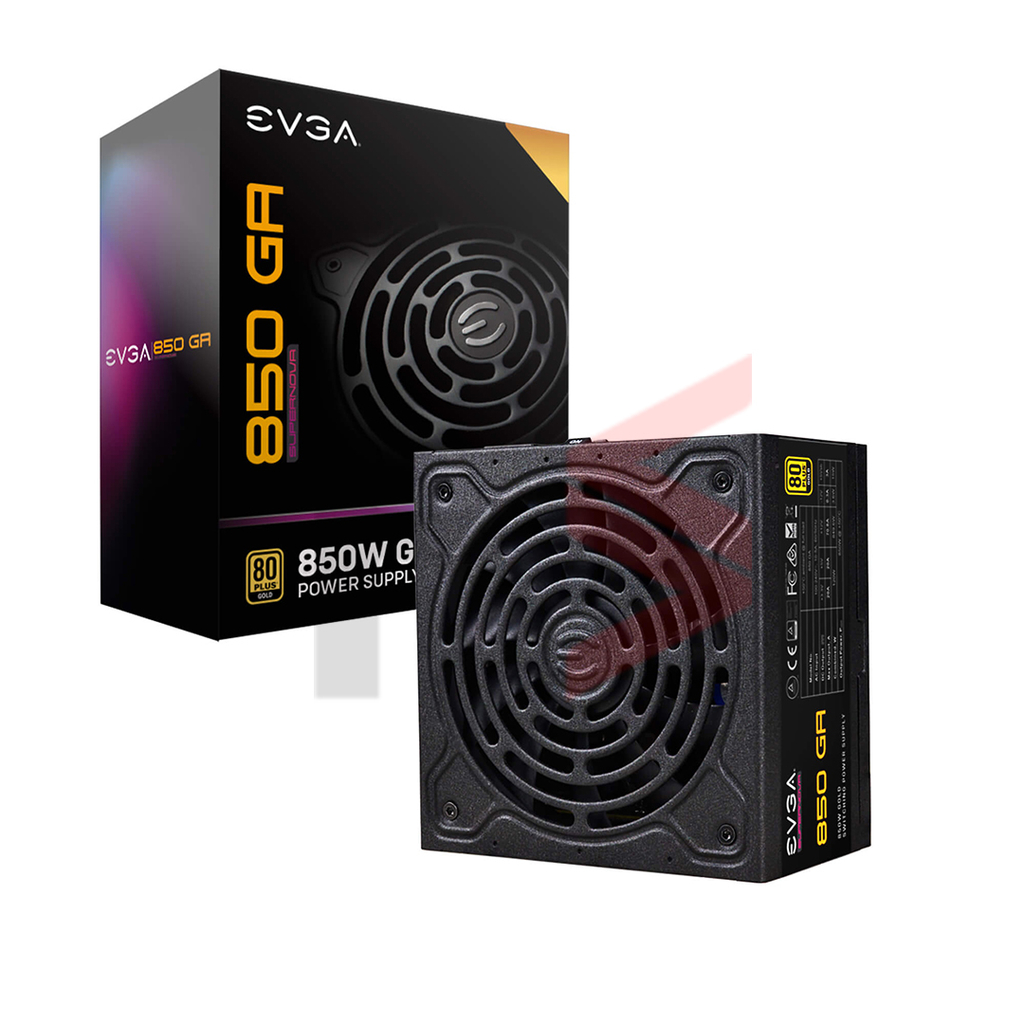

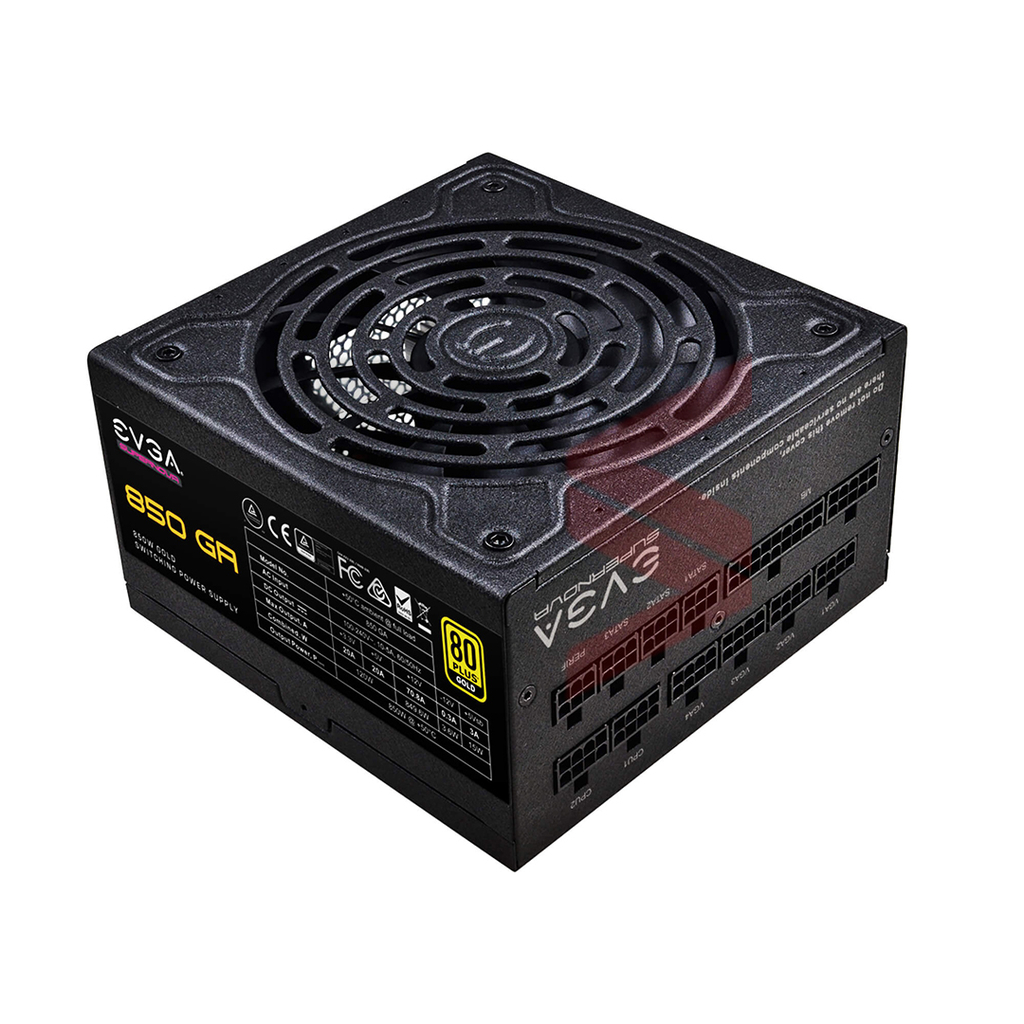

Fuente Evga Supernova 850w Ga 80 Plus Gold Full Modular -- 220-Ga-0850-X1
Ideal para Mineria o Equipos de Gama Alta

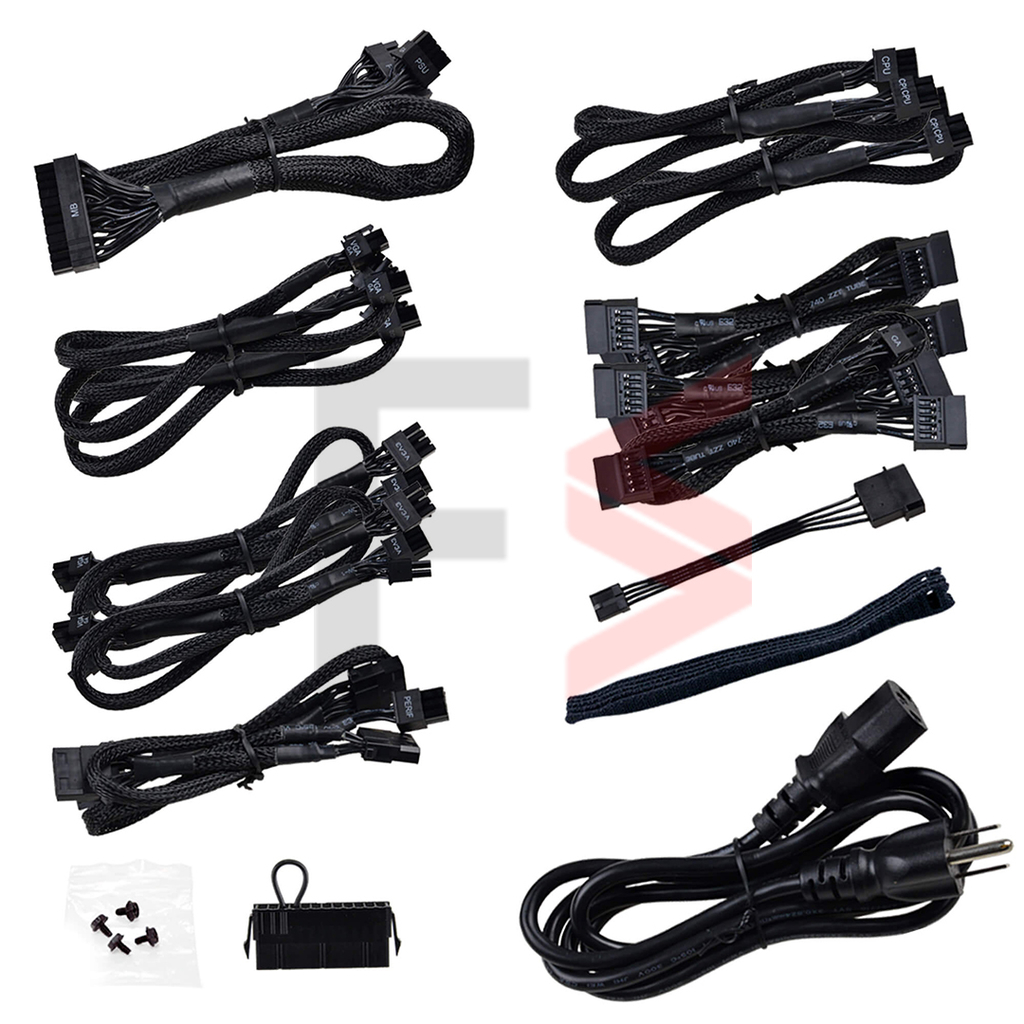

CABLE LENGTH
ATX Cable 1x 600mm (m)
EPS Cable 2x 700mm (m)
PCIe Cable 2x 700mm (m), 2x 700mm, 850mm(m)
SATA Cable 3x 550mm, 650mm, 750mm (m)
Four-Pin Peripheral Cable 1x 550mm, 650mm, 750mm, 850mm (m)
Floppy Adapter 1x Molex to FDD Adapter
AC Power 1x 1500mm (m)
Modular Cable Type Full

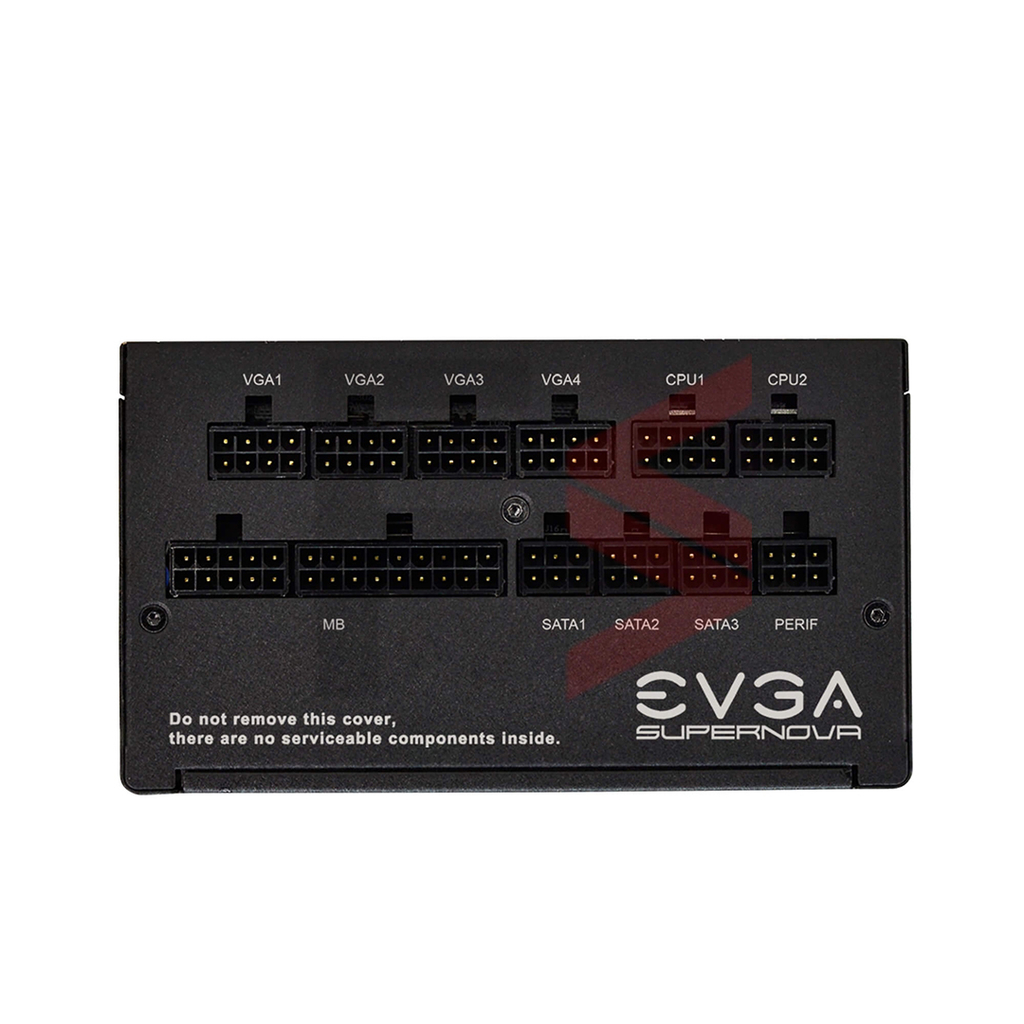

CONNECTOR QUANTITY
24 Pin ATX 1x
EPS (CPU) 2x 8pin (4+4)
PCIe 6x 8pin (6+2)
SATA 9x
Four-Pin Peripheral 4x
Floppy 1x

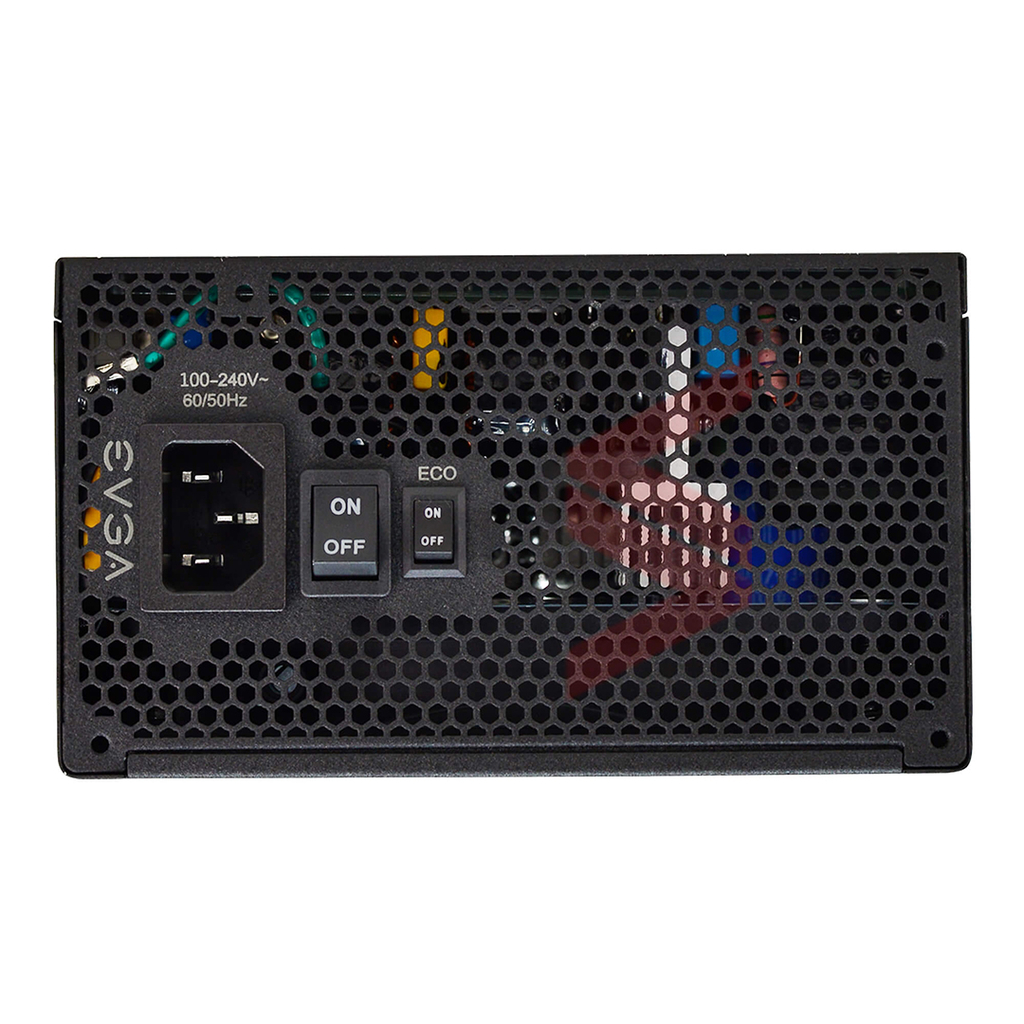

INPUT
Input Voltage 100-240 VAC
AC Input 10-5A
Input Frequency Range 50/60 Hz
Efficiency 90% or Higher Typical

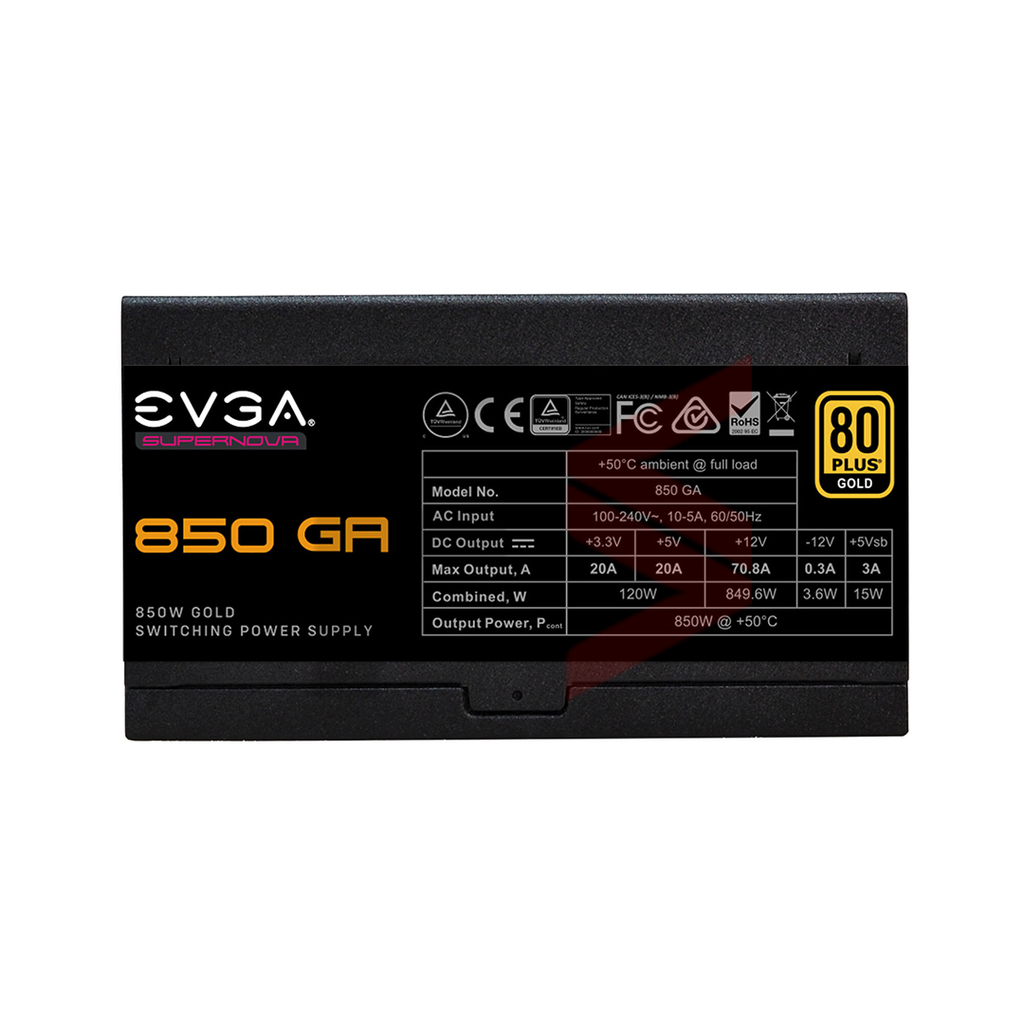

OUTPUT
Rail +3.3V +5V +12V -12V +5Vsb
Max output 20A 20A 70.8A 0.3A 3.0A
849.6W
120W 849.6W 3.6W 15W
Total 850W@50°C
ADDITIONAL DETAILS
Operating Temperature 0° to 50° C
Japanese Capacitors 100%
ECO Mode Yes
MTBF 100,000 Hours
Gross Weight 6.59 lbs
Size 86mm (H) x 150mm (W) x 150mm (L)
Approvals TUV, CB, CE, FCC, RCM, cTUVus, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014
Fan Size / Bearing 135mm Double Ball Bearing
